Industrial Flow Instrumentation

Heavy-duty inline flow meters and thermodynamic process transmitters. Designed for absolute precision logging of steam, chemical fluids, hydrocarbons, and wastewater.

Request a Technical Consult

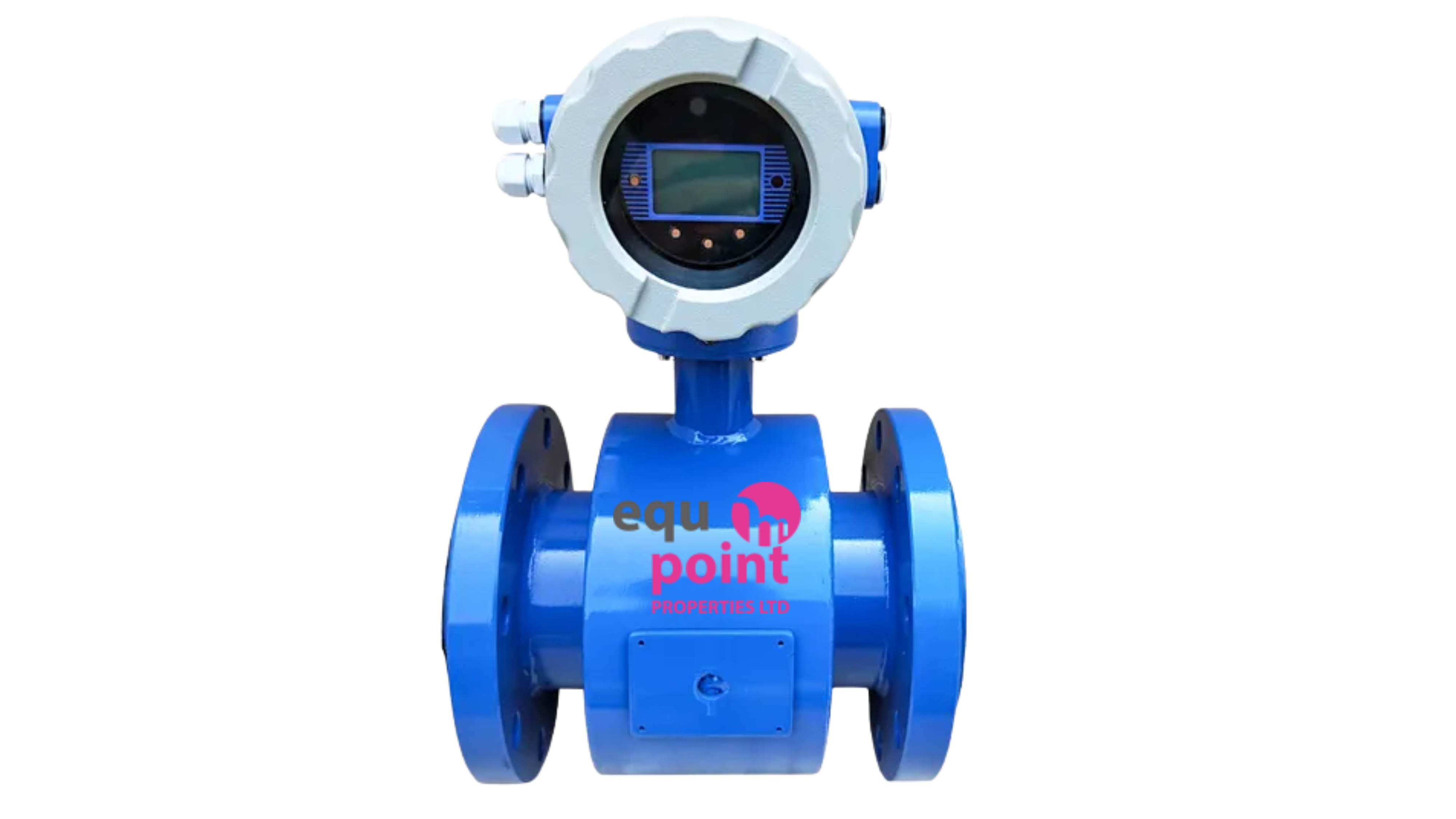

High-Precision Process Flow Transmitters

Equpoint's industrial flow metering systems are configured to deliver highly reliable metrics under harsh fluid-dynamic pressures and varying thermal ranges. By utilizing solid-state engineering principles, our instruments require minimal maintenance while preserving calibration stability over years of continuous field operations.

Our solutions interface natively with industrial telemetry protocols such as Modbus RTU, Modbus TCP, HART, and Profibus. Whether measuring conductive corrosive media using electromagnetic sensors or tracking high-speed thermodynamic steam loads using vortex shedding, Equpoint flow meters ensure absolute operational transparency.

Industrial Flow Classifications

Select from our premium range of solid-state flow meters and heavy process monitoring systems.

Electromagnetic Flow Meters

Ideal for conductive liquids, industrial wastewater, and corrosive chemical slurries. Features standard PTFE or Neoprene inner pipe linings and Hastelloy electrodes, assuring zero head-loss and long-life durability.

Conductive Media

Vortex-Shedding Transmitters

Designed for steam, gases, and low-viscosity fluids. Operates via piezoelectric sensors recording vortices behind a bluff body, integrated with temperature-pressure (PT) sensors for true mass flow calculation.

Steam & Gas Logging

Turbine Flow Sensors

High-frequency rotor sensors optimized for clean fluids, dynamic hydrocarbon lines, and light petroleum products. Delivers high accuracy, minimal response lag, and robust calibration retention.

Hydrocarbon / Clean Water

SCADA & HART Telemetry

HART-compatible transmitters facilitating seamless telemetry routing over 4-20mA lines, Modbus RTU/TCP grids, or standalone wireless networks directly back to centralized control consoles.

SCADA Integrated

Technical Specification Matrix

Review our standardized engineering specifications across primary industrial flow meter categories.

Performance Parameter	Electromagnetic Flow Meter	Vortex Mass Flow Transmitter	Industrial Turbine Meter
Nominal Diameter (DN)	DN 15 – DN 2000 (½″ to 80″)	DN 15 – DN 300 (½″ to 12″)	DN 4 – DN 200 (⅛″ to 8″)
System Measurement Accuracy	±0.5% (Option for ±0.2%)	±1.0% (Liquid), ±1.5% (Gas & Steam)	±0.5% (Option for ±0.2%)
Process Temperature Range	-20°C to +150°C (depending on liner)	-40°C to +350°C (High Temp Option)	-20°C to +120°C
Nominal Pressure Rating	PN 10, PN 16, PN 40, ANSI 150/300	PN 16, PN 25, PN 40	PN 16, PN 40, PN 63 (High Pressure)
Internal Linings / Wetted Parts	PTFE, FEP, PFA, Polyurethane, Neoprene	SS 304, SS 316L, Hastelloy C	SS 304, SS 316 (Rotor: Duplex SS / Tungsten Carbide)
Output Communication	4-20mA, Pulse, Modbus RTU, HART	4-20mA, Pulse, Modbus RTU, HART (PT comp)	4-20mA, Modbus RTU, Pulse, HART

Request Industrial Flow System Design

Connect with our chemical and process instrumentation division to size and configure inline transmitters matching your processing facility parameters.
